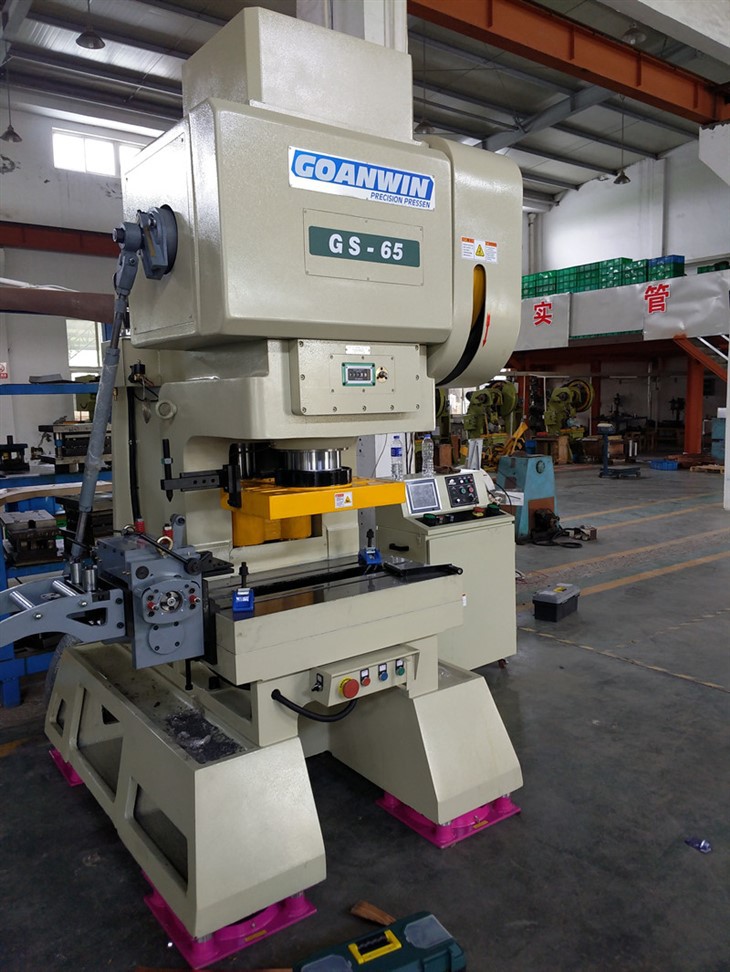

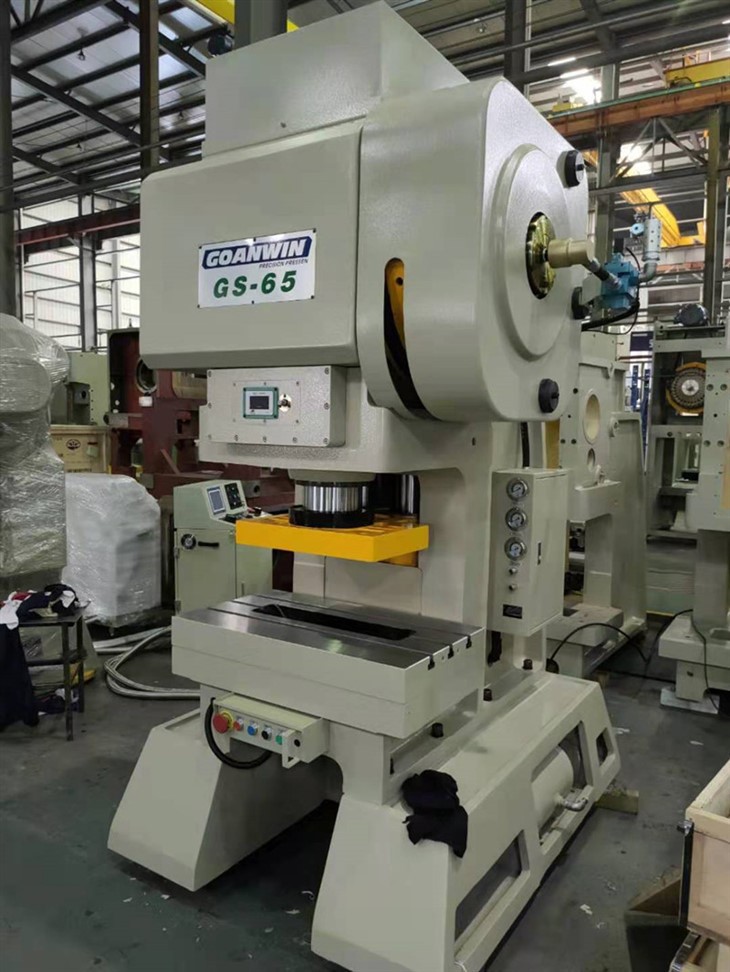

This C frame high speed press is suitable for stamping some small precision parts with thin material, max speed can be up to 900spm with small tonnage 30ton. It is the most economical high speed press type.
It is widely used in industries such as electric motor and generator manufacturing, where metal buttons, eyelets, terminals, and stator and rotor plates are frequently produced by high-speed stamping.
Features
One-piece cast iron C frame ensures better stability and stamping precision.
Excellent dynamic balance device to reduce vibration and noise to reach the best accuracy and stability.
Forced lubrication system to minimize the thermal deformation , high precision products processing can be performed.
This press allows for rapid mass production which reduce the production time and costs.It is a cost effective option for customers to improve their metal stamping operations.
Review the specifications of our GS Series H frame highs speed press below, and then contact us for assistance in identifying the right mechanical press for your application.
Technical Datas
| Model | GS-30 | GS-45 | GS-65 | GS-80 | |||||||||
| A | B | C | A | B | C | A | B | C | A | B | C | ||
| Capacity | Ton | 30 | 45 | 65 | 80 | ||||||||
| Stroke | mm | 20 | 30 | 40 | 20 | 30 | 40 | 30 | 40 | 50 | 30 | 50 | 60 |
| Stroke Per Minute | SPM | 200-700 | 200-600 | 200-500 | 200-700 | 200-600 | 200-500 | 200-600 | 200-500 | 200-400 | 200-600 | 200-500 | 200-400 |
| Stroke Per Minute | SPM | 200-900 | 200-800 | 200-600 | 200-800 | 200-700 | 200-600 | 200-700 | 200-600 | 200-500 | 200-700 | 200-600 | 200-500 |
| Die Height | mm | 215 | 210 | 205 | 245 | 240 | 2235 | 255 | 250 | 245 | 360 | 350 | 345 |
| Slide Adjustment | mm | 30 | 30 | 50 | 50 | ||||||||
| Slide Area | mm | 330x225 | 420x320 | 540x350 | 600x400 | ||||||||
| Bolster Area | mm | 600x330x80 | 720x450x90 | 900x525x100 | 1000x590x120 | ||||||||
| Bed Opening | 400(Upper)x300(Lower)x100(Oblique) | 500(Upper)x400(Lower)x100(Oblique) | 600(Upper)x525(Lower)x100(Oblique) | 480x120 | |||||||||
| Motor | kw | 3.7 | 5.5 | 11 | 15 | ||||||||
| Size | mm | 2133x1206x1011 | 2345x1400x1222 | 2695x1700x1400 | 1350x1840x2760 | ||||||||
| Weight | kg | 2800 | 5000 | 6500 | 7500 | ||||||||
