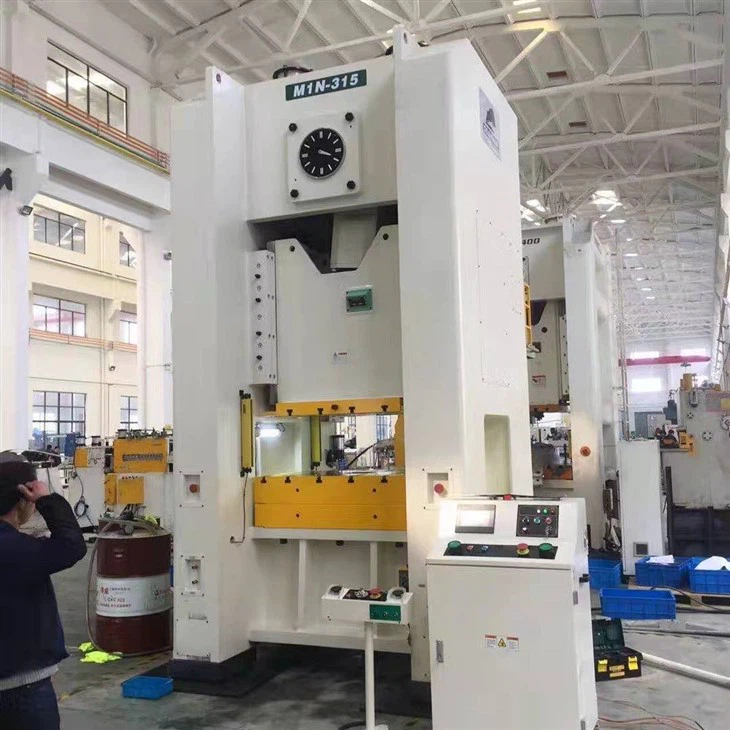

This H frame Single Crank Precision Press could be widely applied in the diversified production process, including metal drawing, bending, marking, flattening, and trimming. And it could also apply single or continuous stamping mode. This straight side stamping press can be equipped with a high-performance wet clutch, which is green energy and high-value product with environmental protection, efficiency, high torque, and low wear.
Features
Heavy, one-piece welded steel frame is fully stress relieved and designed to resist deflection, providing more accurate stampings and longer die life.
High precision six-side or eight-side long slide guide.
Editable speed of the slider during operation, high product qualification rate, and production efficiency;
High torque, low noise clutch and brake.
Energy-saving and environmentally friendly, ultra-low power consumption.
High accuracy transmission gears and high rigidity crank ensure press long life and accuracy.
Forced Lubrication system with default monitor ensures the operation reliability.
User-friendly design and electric control system providing high automation compatibility.
Fast response hydraulic overload protection system relieves the pressure of the tonnage overload , stopping the press immediately and protecting the press and dies from damage.
Shock-absorbing pad.
Review the specifications of our M1N Series H frame mechanical press below, and then contact us for assistance in identifying the right mechanical press for your application.
Goanwin presses can be customized to meet a wider range of SPM, stroke, rating point (BDC), bed and other specifications and dimensions.
Technical Datas
| Model | M1N-125 | M1N-160 | M1N-200 | M1N-250 | M1N-315 | M1N-400 | M1N-500 | M1N-600 | M1N-800 | ||||||
| V | H | V | H | V | H | V | H | V | H | V | V | V | V | ||
| Capacity | Ton | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 600 | 800 | |||||
| Rated Tonnage Point | mm | 6 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | 7 | 3.5 | 8 | 8 | 10 | 13 |
| Stroke | mm | 180 | 80 | 200 | 90 | 200 | 100 | 250 | 150 | 250 | 150 | 300 | 300 | 300 | 300 |
| Stroke Per Minute | SPM | 35-60 | 60-90 | 20-50 | 50-70 | 20-50 | 50-70 | 20-40 | 40-50 | 20-40 | 40-50 | 20-35 | 20-30 | 15-25 | 10月20日 |
| SPM | 35 | 35 | 35 | 30 | 30 | 30 | 25 | 20 | 15 | ||||||
| Die Height | mm | 360 | 460 | 450 | 500 | 550 | 550 | 550 | 550 | 600 | |||||
| Slide Adjustment | mm | 80 | 100 | 110 | 120 | 120 | 120 | 150 | 150 | 150 | |||||
| Slide Area | mm | 900x600 | 900x700 | 1000x700 | 1100x700 | 1100x800 | 1300x900 | 1400x900 | 1400x1000 | 1700x1200 | |||||
| Bolster Area | mm | 1000x600x110 | 1100x800x160 | 1200x800x170 | 1250x900x180 | 1300x900x200 | 1400x1000x220 | 1500x1100x230 | 1600x1100x240 | 1800x1300x24 | |||||
| Shank Hole | mm | Ø65 | Ø65 | Ø65 | Ø65 | Ø65 | Ø65 | Ø65 | Ø65 | Ø70 | |||||
| Main Motor | kw.p | 15x4 | 15x4 | 18.5x4 | 22x4 | 30x4 | 37x4 | 45x4 | 55x4 | 75x4 | |||||
| Slide Adjust Motor | kw.p | 0.75x4 | 0.75x4 | 0.75x4 | 1.5x4 | 1.5x4 | 2.2x4 | 2.2x4 | 3.7x4 | 5x4 | |||||
| Air Pressure | kg/cm² | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||
| Side Opening | 600x450 | 750x450 | 750x600 | 750x600 | 750x600 | 800x600 | 900x600 | 1000x600 | 1000x600 | ||||||
| Precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | ||||||
